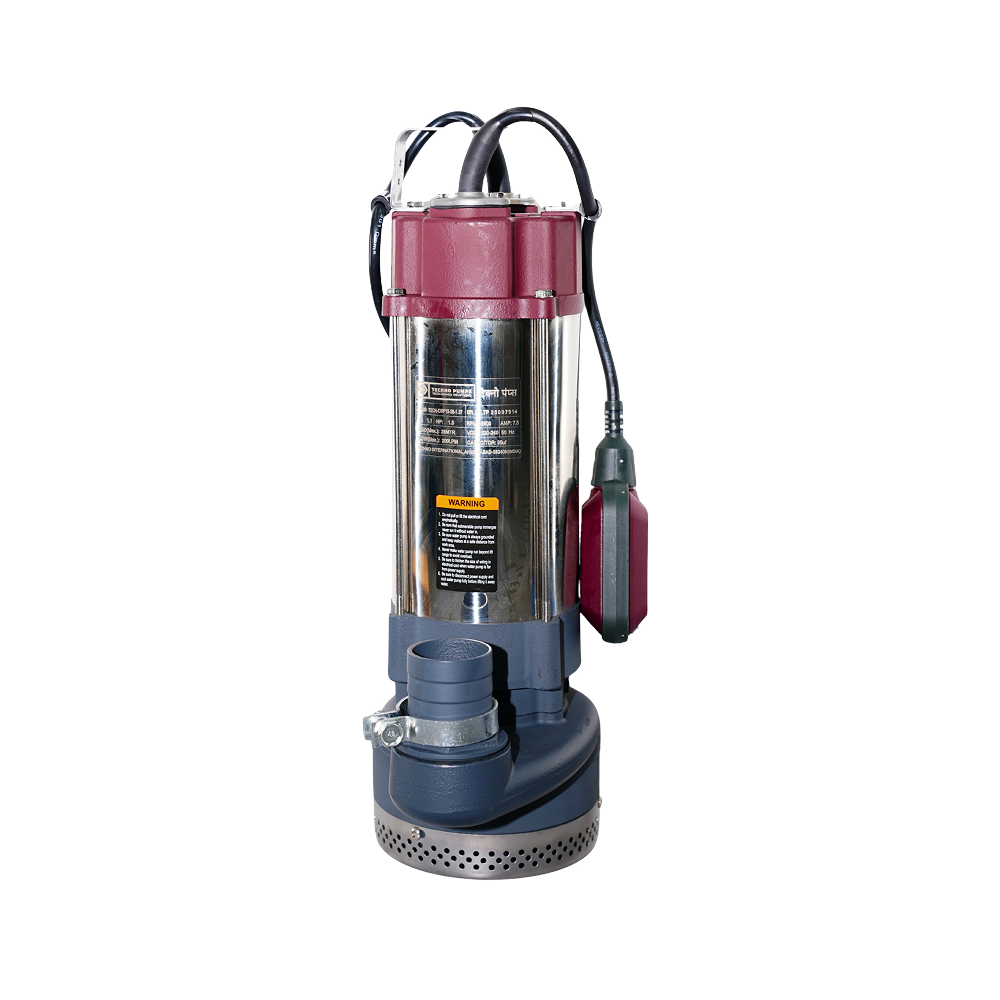

TECH-CWP14-42-1.5F

Applications

• House hold water supply
• Garden watering
• Pressure boosting system
• Agriculture
• Irrigation

Application Limits

• Water temperature Up to 45°C
• PH: 6.5 to 8.5
• The grain diameter of the solid in the water is not bigger than 0.2mm.
• Maximum immersion depth: 4 to 10 Meters

Performance Range

• Flow: Up to 1100 LPM
• Head: Up to 42 Meters
• Speed: 2900 RPM

Motor Detail

• Insulation class: F
• Protection class: IP68
• Duty: S1
• Power: 0.37KW-1.5KW
• Power supply : Single phase 220v-240v, 50Hz
• Cable Length: 10 Meters
• Cable with float switch
• Motor winding: 100% copper

Feature and Benefits

• Light weight, compact design for easy transport and positioning of pump.
• Built-in thermal protection prevent motor from overloading, overheating.
• Chrome plated shaftensure high corrosion resistant and durability.

Installation and use

This model of pump is characterized with high heads, compact size, light weight and convenient use and vastly used In high-position water
delivery, flush and places as construction sites. The float switch can automatically control on and off with the change of the water level. The
protector in the motor can automatically cut off the power when it over heator over current.

Pump Selection Chart

Model	Power		Pump Size		Cable (mm2/Mtr.)	Voltage	Outlet (Inch)	Max. Flow (LPM)	Max. Head (m)	Net Weight (Kg)
	KW	HP	H(mm)	W(mm)
TECH-CWP15-28-1.1F	1.5	2	570	230	3Cx2.0/10m	220-240v	2″	200	42	25.6

Performance Chart



Model	Power		Q	US GPM	0	7	13	20	26	33	40	46	53
	KW	HP		M³/H	0	1.5	3	4.5	6	7.5	9	10.5	12
				L/MIN	0	25	50	75	100	125	150	175	200
TECH-CWP15-28-1.1F	1.5	2		Head (m)		42	40	36	32	27	22	17	13	9
