TECH-PP05

Applications

• Domestic Water Supply
• Lawn Sprinkler
• Automobile Washing
• Gardens Water Supply
• Pressure Boosting in Various Fields



Application Limits

• Manometric Suction Lift Up to 8m
• Liquid Temperature between O°C to 90°C
• Ambient Temperature Up to 40°C
• Max. Working Pressure
• 6 Bar for 0.37KW TO 0.75KW
• 10 Bar for 1.1KW TO 2.2KW



Performance Range

• Flow: Up to 1100 LPM
• Head: Up to 36 Meter
• Speed: 2900 RPM
• Power: 0.37KW – 2.2 KW
• Power Frequency 50 Hz



Motor Detail

• TEFC Induction motor.
• Insulation Class – F
• Protection IP- 54
• Max. ambient temp.: +40°C
• Anti-heat ball bearing
• Environment temperature capacity 65°C
• Thermal overload protector
• Motor winding: 100% copper



Installation in applications

Suitable for clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the
pump is made.
Thanks for it’s reliability, the fact that these pumps are easy to use and very economical, these are ideal for domestic and civil use and in particular for
distributing water in combination with small and medium pressure sets, irrigation of gardens and allotment. The pump should be installed in an
enclosed environment, or at least sheltered from inclement weather.

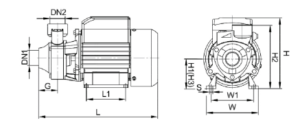

Dimension

Model	Inlet	Outlet	Dimension (mm)
	DN1	DN2	L	L1	W	W1	H	H1	H2	H3	G	S
TECH-PP05	1″	1″	260	83	112	93	148	63	140	63	43	10.5

Pump Selection Chart

Model	Power		Phase	Inlet/Outlet	Max. Flow (lpm)	Max. Head (m)	Max. Suction (m)
	KW	HP
TECH-PP05	0.37	0.5	1 Phase	1″ x 1″	36	35	8

Performance Chart

Model	Power		Q	US GPM	0	1.3	2.6	4.0	5.3	6.6	7.9	9.2	9.5
	KW	HP		M³/H	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.2
				L/MIN	0	5	10	15	20	25	30	35	36
TECH-PP05	0.37	0.5		H Meters		35	32	30	25	20	15	10	5	2
