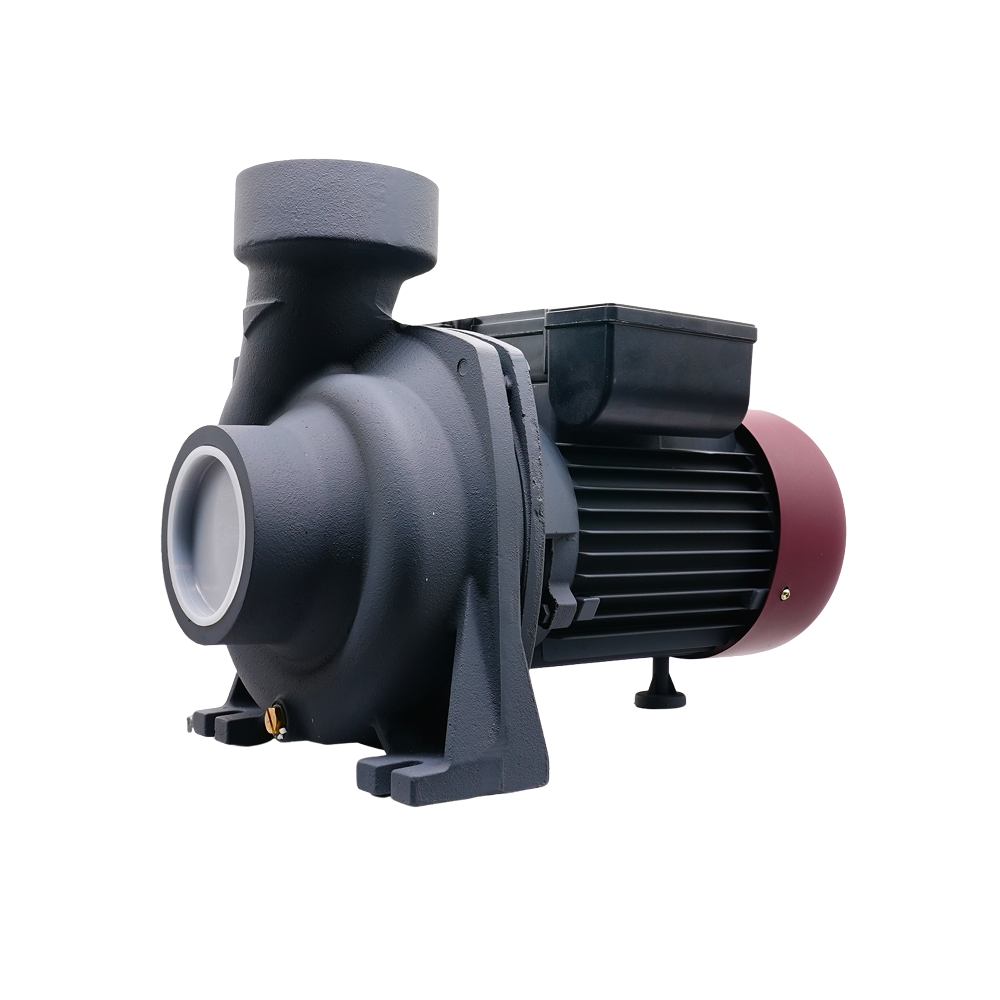

TECH-CP30

Applications

• Domestic Water Supply
• Lawn Sprinkler
• Automobile Washing
• Gardens Water Supply
• Pressure Boosting in Various Fields

Application Limits

• Manometric Suction Lift Up to 8m
• Liquid Temperature between O°C to 90°C
• Ambient Temperature Up to 40°C
• Max. Working Pressure
• 6 Bar for 0.37KW TO 0.75KW
• 10 Bar for 1.1KW TO 2.2KW

Performance Range

• Flow: Up to 1100 LPM
• Head: Up to 36 Meter
• Speed: 2900 RPM
• Power: 0.37KW – 2.2 KW
• Power Frequency 50 Hz

Motor Detail

• TEFC Induction motor.
• Insulation Class – F
• Protection IP- 54
• Max. ambient temp.: +40°C
• Anti-heat ball bearing
• Environment temperature capacity 65°C
• Thermal overload protector
• Motor winding: 100% copper

Installation in applications

Suitable for clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
Thanks for it’s reliability, the fact that these pumps are easy to use and very economical, these are ideal for domestic and civil use and in particular for distributing water in combination with small and medium pressure sets, irrigation of gardens and allotment. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

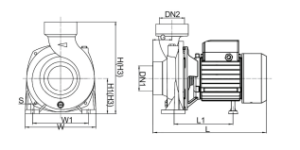

Dimension

Model	Inlet	Outlet	Dimension (mm)
	DN1	DN2	L	L1	W	W1	H	H1	H2	H3	G	S
TECH-CP30	3″	3″	428	265	240	188	311	121	311	121	68	11

Pump Selection Chart

Model	Power		Phase	Inlet/Outlet	Max. Flow (lpm)	Max. Head (m)	Max. Suction (m)
	KW	HP
TECH-CP30	2.2	3	1 Phase	3″ x 3″	1100	18	8

Performance Chart

Model	Power		Q	US GPM	0	26	53	79	106	132	159	185	211	238	264	291
	KW	HP		M³/H	0	6	12	18	24	30	36	42	48	54	60	66
				L/MIN	0	100	200	300	400	500	600	700	800	900	1000	1100
TECH-CP30	2.2	3		H Meters		18	17	16	15	14	13	12	11	10	09	08	07
