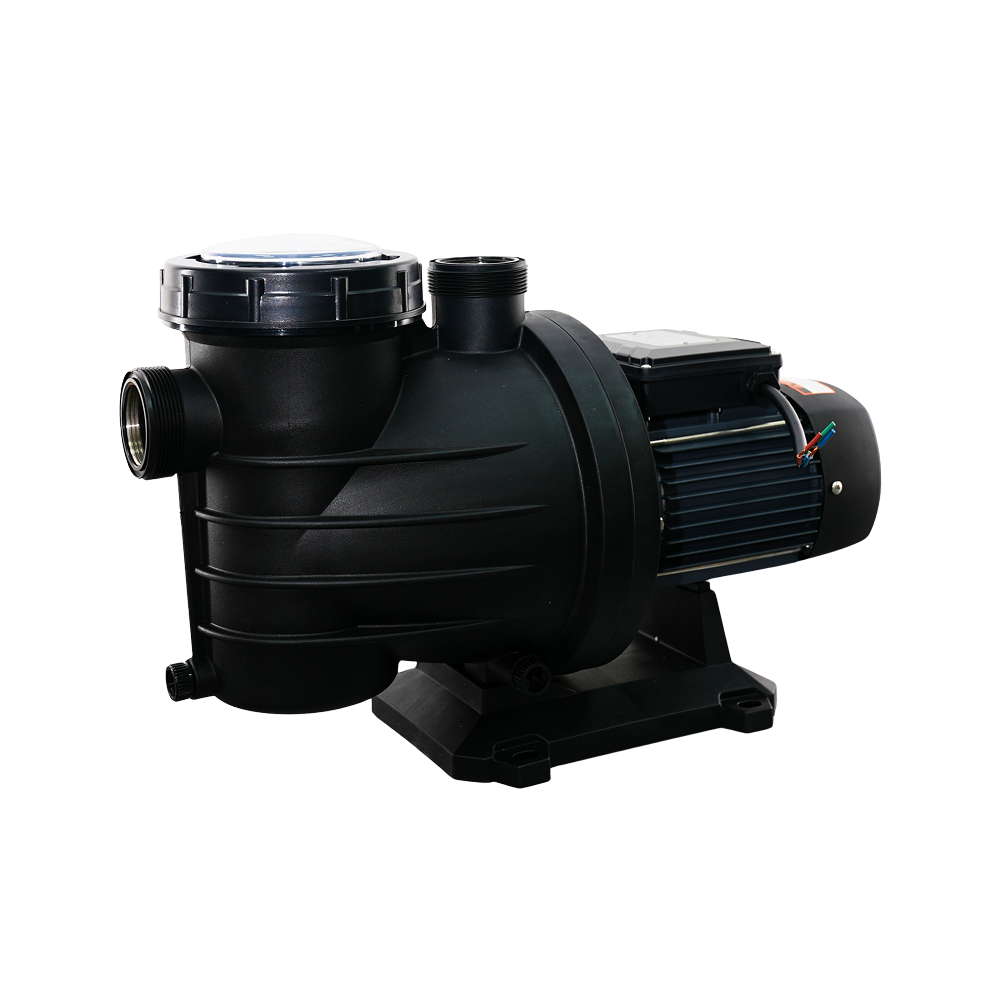

TECH-SPP15

Applications

• Home and Garden medium pool
• Cellars, drain pool, pond
• Flooded area, landscape fountains
• Domestic clean pool, light industrial
• Water circulation & filtration systems

Application Limits

• Liquid temperature 5° to 50°c
• PH: 6.5 to 8
• Ambient temperature Up to 40°c
• Maximum suction: 3.5 Meters

Performance Range

• Capacity: Up to 30 m³/h
• Head: Up to 19 Meters
• Speed: 2900 RPM

Motor Detail

•  Power rating: 0.75KW-2.2KW, 2 pole
• Power supply: Single phase 220-240Vac, 50Hz
  Three phase 380-420Vac, 50Hz
• Insulation class: F
• Protection class: IP54
• Duty: S1
• Connection cable length: 30 CM
• Anti-heat ball bearing
• Environment temperature capacity 65°C
• Thermal overload protector in single phase motor
• Motor winding: 100% copper

Feature

• These series of swimming pool pumps are self-priming centrifugal pumps with filter, it is mainly used in water circulation & filtration systems
• These swimming pool pumps are medium swimming pool pumps and designed from Italian technology
• These have been specifically designed to incorporate features that provide reliable and efficient pump operation
• Excellent suction head, best performance, suitable pre-filter, stable running and low noise

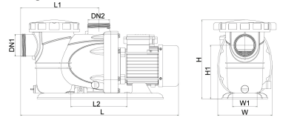

G.A. Drawing

Dimension

Model	DN1	DN2	L	W	H	L1	L2	H1
TECH-SPP15	2″	2″	554	190	276	274	197	187



Pump Selection Chart

Model	Power		Volt (50Hz)	Speed (RPM)	Connection	inlet (inch)	outlet (inch)	Max. Flow (m3/h)	Max. Head (Mtr)	Net Weight (Kg)
	KW	HP
TECH-SPP15	1.1	1.5	220-240v	2900	capacitor inbuilt	2″	2″	22	15	10



Performance Chart

Model	Power		Q	US GPM	0	26	40	53	250	279	92	106	119	132
	KW	HP		M³/H	0	6	9	12	15	18	21	24	27	30
				L/MIN	0	100	150	200	250	300	350	400	450	500
TECH-SPP15	1.1	1.5		Head (m)		15	14	13	12	10	8	5
